工业冷油机

工业冷油机

自然风冷水机冷油机

切削液冷却机

应用范围:

CNC 综合加工机

研磨机

切削机

放电加工机及雷射机

    吉美斯中国创造 中国品牌,专业生产大小工业冷水机组.吉美斯牌工业冷水机让工业环保更节能.
    吉美斯牌工业冷水机让工业环保更节能.

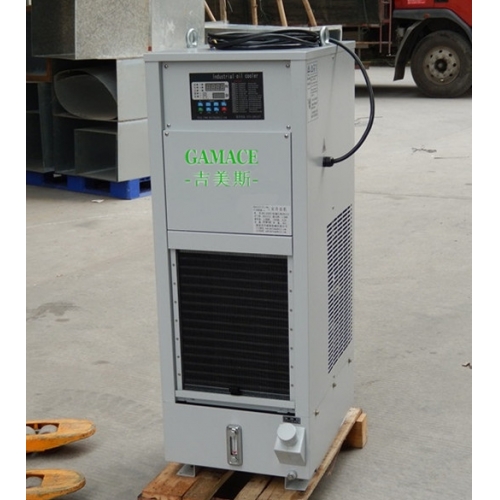

    冷却油循环机
    冷却油循环机是本公司自行研发设计的一款精密型制冷机,多数采用风冷散热方式,是由PID系统控制,温差为±1℃,进口耐高温泵浦,高压力,大流量,采用高效316不锈钢板式换热器达到最佳冷热交换效能,选用进口品牌压缩机,使用寿命长久。此冷油机机内主要控制电器和操作元件均为进口名牌,备更换媒体阀门,使用方便,优良坚固机架,护养极便。
    本冷却油循环机具备以下性能
    1、 防止工作机械因油温的变化而影响精度;
    2、 防止油质因高温劣化,保持油液粘度不变,使工作机械稳定工作;
    3、 附有自动故障报警功能,可通过特定的方式及时提醒用户对装置进行检修,以免机件损坏;
    4、 油温控制以机体温度(室温)为依据,用户可根据机体温度设定油温,防止机械结构产生热变形;
    5吉美斯工业冷水机 沉浸式油液冷却控温装置不受杂质污染,不受切削金属粉末等所干扰,清洁简单、保养容易;安装简便、不占空间;

                            GMS-A工業冷油水機參數表
                          型号Model                     项目Ltems GMS-1A GMS-2A GMS-3A GMS-4A GMS-5A GMS-6A GMS-8AD
     制冷量      C00ling capacity KW        50HZ  2.94 5.67 8.39 10.9 13.95 16.9 21.8
           60HZ 3.44 6.63 9.82 12.75 16.32 19.77 25.5
    kcal/h    50HZ  2528 4872 7216 9347 11990 14560 18748
           60HZ 2958 5701 8442 10698 14028 17000 21935
    温控范围 Temperature range 3℃-常温(0℃以下可定制)3℃-Room temperature(Below0℃ can be customized
    电  源  Power supply 1PH~220V50HZ/60HZ            3PH-380/415V 50HZ /60HZ
    总功率         Total power KW 1.35 2.25 3.37 4.17 5.68 6.38 8.25
    制冷剂    Refrigerant 名称/Name R22
    控制方式/Control 毛细管/外平衡式热力膨胀阀Capillary/external balance of thermal expansion valve
    压缩机      Compressor 类型/Type 全封闭涡旋式(活塞式)Hermetic scroll(piston)
    功率/Power(KW) 0.75 1.5 2.2 3 3.75 4.5 3.0×2
    冷凝器    Condensator 类型/Type 高效紫铜管套铝翅片式+低噪音外转子风机Efficient brass sets corrugated aluminum fin
    风扇功率(KW)   Fan power 0.09 0.15 0.14×2 0.14×2 0.19×2 0.19×2 0.25×2
    蒸发器    Evaporator 类型/Type 不锈钢盘管/铜盘管/不锈钢板式/壳管式 Stainless steel coil / copper tube / stainless steel plate / shell and tube type
    容量L
    Capacity
    25 36 45 45 56 56 120
    進出油管徑(inch) Diameter   1/2" 1/2" 3/4" 3/4" 1" 1" 1-1/2"
    油泵 /Pump 功率/Power(KW) 0.37 0.37 0.37 0.37 0.75 0.75 0.75
    最高揚程(m)/ Head   26 26 26 26 34 34 34
    出口压力损失/Outlet pressure loss 3
    油粘度使用范围/Oil viscosity range 液压油/润滑油4-300 CTS  Hydraulic oil / oil CTS 4-300
    安全保护Security 压缩机过热保护,过流保护,高低压力保护,超温保护,流量保护,相序/缺相保护,低液位保护,防冻保护                                             Compressor overheating protection,overcurrent protection,high and low pressure protection,overtemperature protection,traffic protection,phase sequence/phase loss protection,low tevel protection,frost protection
    机械尺寸     Measure L(mm) 560 620 990 990 1160 1160 1450
    W(mm) 460 520 530 530 570 570 690
    H(mm) 850 990 1180 1180 1220 1220 1630
    机械重量        Unit weight Kg 65 100 160 175 195 195 290
    備註:1.製冷量是依據:冷凍進出油溫度30℃/25℃、冷卻進出風溫度30℃/40℃                                                                                                              Note: 1 refrigeration capacity is based on:refrigeration oil inlet and outlet temperature of 30 C /25 C,cooling inlet and outlet temperature of 30 C /40                                                                                                                                                                                            2.工作範圍:迴圈油溫度範圍:20℃至45℃;在冷卻環境溫度10-45℃下使用。                                                                                                                             2 scope of work: loop oil temperature range:20 to 45 degrees C; in the cooling environment temperature 10-45.                                                                   注:需配油箱或有其他特殊要求,請在定購時特別注明。 Note: to be equipped with oil tank or other special requirements, please specify when ordering.
